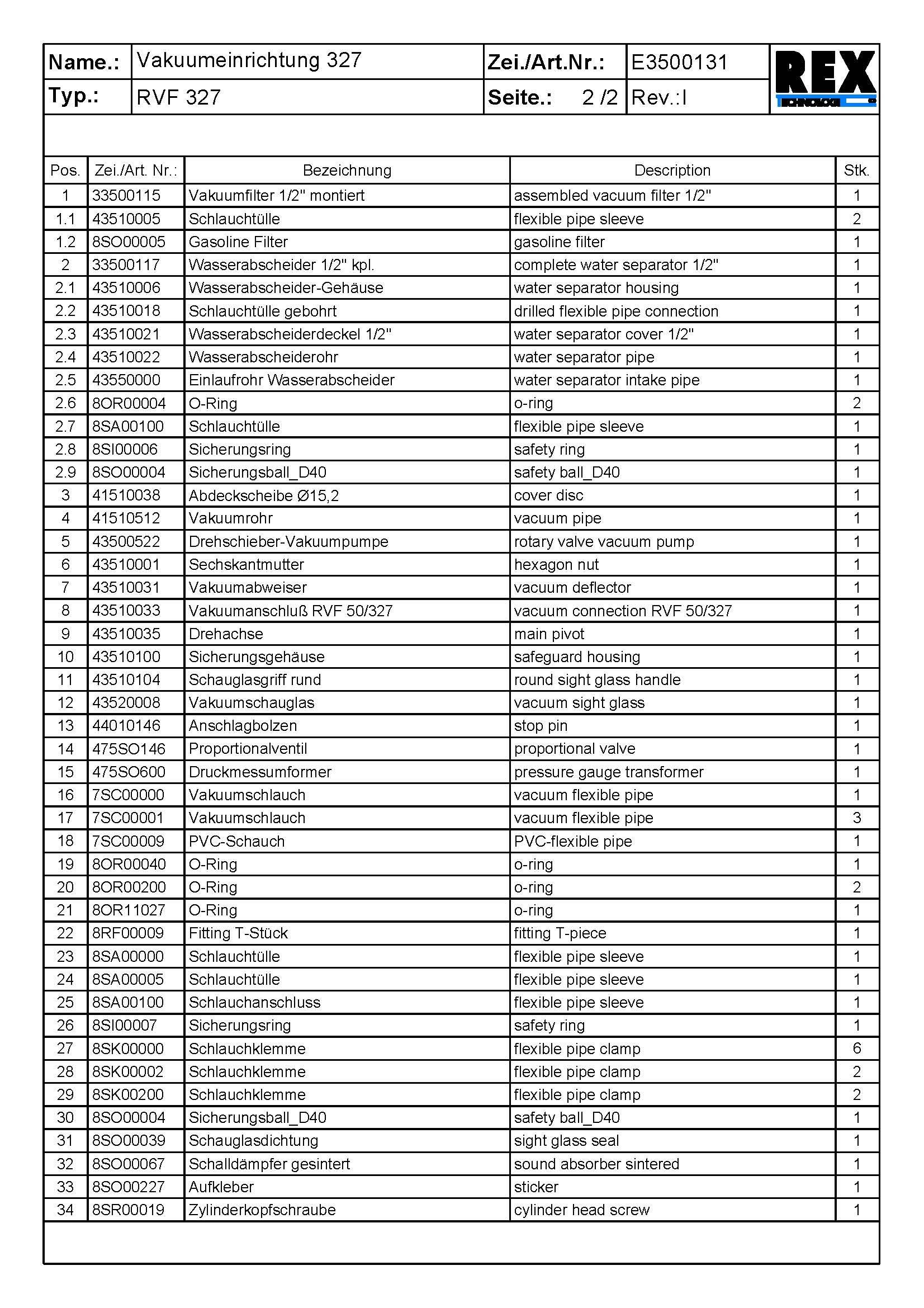

 Name. :  Vakuumeinrichtung 327  Zei./Art.Nr. :  E3500131
 Typ. :  RVF 327 เครื่องอัดไส้กรอก  Seite. :  2/2  Rev. :  l
No. Code Name Description Qtn. Price
1 33500115

   Assembled vacuum filter 1/2" 1 0
1.1 43510005

   Flexible pipe sleeve 2 0
1.2 8SO00005

   Gasoline filter 1 0
2 33500117

   Complete water separator 1/2" 1 0
2.1 43510006

   Water separator housing 1 0
2.2 43510018

   Drilled flexible pipe connection 1 0
2.3 43510021

   Water separator cover 1/2" 1 0
2.4 43510022

   Water separator pipe 1 0
2.5 43550000

   Water separator intake pipe 1 0
2.6 8OR00004
  O-Ring

    O-Ring 2 0
2.7 8SA00100

   Flexible pipe sleeve 1 0
2.8 8SI00006

   Safety ring 1 0
2.9 8SO00004

   Safety ball_D40 1 0
3 41510038

   Cover disc 1 0
4 41510512

   Vacuum pipe 1 0
5 43500522

   Rotary valve vacuum pump 1 0
6 43510001

   Hexagon nut 1 0
7 43510031

   Vacuum deflector 1 0
8 43510033

   Vacuum connection RVF 50/327 1 0
9 43510035

   Main pivot 1 0
10 43510100

   Safeguard housing 1 0
11 43510104

   Round sight glass handle 1 0
12 43520008

   Vacuum sight glass 1 0
13 44010146

   Stop pin 1 0
14 475SO146

   Proportional valve 1 0
15 475SO600

   Pressure gauge transformer 1 0
16 7SC00000

   Vacuum flexible pipe 1 0
17 7SC00001

   Vacuum flexible pipe 3 0
18 7SC00009

   PVC-flexible pipe 1 0
19 8OR00040
  O-Ring

   O-Ring 1 0
20 8OR00200
  O-Ring

   O-Ring
 2 0
21 8OR11027
  O-Ring

   O-Ring 1 0
22 8RF00009

   Fitting T-piece 1 0
23 8SA00000

   Flexible pipe sleeve 1 0
24 8SA00005

   Flexible pipe sleeve 1 0
25 8SA00100

   Flexible pipe sleeve 1 0
26 8SI00007

   Safety ring 1 0
27 8SK00000

   Flexible pipe clamp 6 0
28 8SK00002

   Flexible pipe clamp 2 0
29 8SK00200

   Flexible pipe clamp 2 0
30 8SO00004

   Safety ball_D40 1 0
31 8SO00039

   Sight glass seal 1 0
32 8SO00067

   Sound absorber sintered 1 0
33 8SO00227

   Sticker 1 0
34 8SR00019

   Cylinder head screw 1 0
